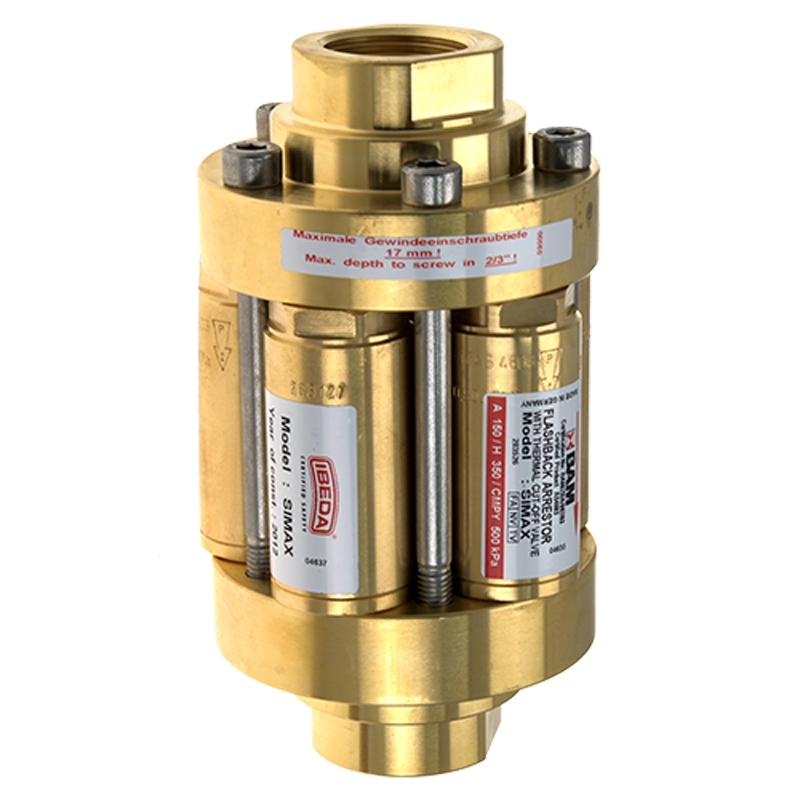

Van chống lửa ngược cỡ lớn

Thiết bị chống cháy ngược lắp cho đường ống 1” (Big size flasback arrestor)

Nhà sản xuất: IBEDA – Đức

Mã số: SINMAX 8N

Kích thước lắp ráp: G1” RH (F: Female) - Tương đương 25,4mm

Loại khí:

Acetylene  (A) /  Hydrogen  (H) / Industrial Gas (C) / Ethylene  Natural Gas (E) / Methane (M) / Propane (P) / Compressure air (D) / Oxygent (O)

Áp suất làm việc:

(A): 0,15 MPa - 1,5 bar / (H): 0,4 MPa - 4,0 bar / (C, E, M, P): 0,50 MPa - 5,0 bar / (O, D): 2,50 MPa

Kích thước và khối lượng: Measure and weight: diameter: 122mm / length: 174mm / weight:3,547 g

Tính năng:

- Ngăn khí ngược chiều

- Ngăn lửa tạt lại

- Van ngắt cảm ứng nhiệt

- Lọc bụi

Sử dụng cho các quá trình:

Cắt max 200mm / Hàn max 30mm / Gia nhiệt max 200mm

Safety device with multiple function: SIMAX 8N

 Model SIMAX 8N for protection of Tapping Points, Distribution Lines and Gas Manifold Systems

 The Safety device SIMAX 8N according to EN 730-1, ISO 5175:

 • avoids dangerous gas mixtures by a gas non-return valve (NV)

 • stops flashback through flame arrestor (FA)

 • a temperature-sensitive cut-off valve stops the gas flow when a predetermined temperature is exceeded (TV)  • a dust filter protects the gas non-return valve against contamination

 • every safety device is 100 % tested

 Safety elements of the IBEDA Safety device SIMAX 8N :

 • NV Gas non-return valve

 • FA Flame arrestor

 • TV Temperature-sensitive cut-off valve

 •    Dust filter

 Maintenance:

 The safety devices have to be tested by a qualified and authorized person at regular intervals according to country specific     regulations. They have to be tested for gas tightness and gas return at least once a year.

 We would be pleased to offer you the flashback arrestor testing unit model: PVGD.

Safety devices are only to be opened and repaired by the manufacturer.  The dust filter may be replaced by a qualified person.

Gas types:

Acetylene  (A) /  Hydrogen  (H) / Industrial Gas (C) / Ethylene  Natural Gas (E) / Methane (M) / Propane (P) / Compressure air (D) / Oxygent (O)

Working pressure:

(A): 0,15 MPa - 1,5 bar / (H): 0,4 MPa - 4,0 bar / (C, E, M, P): 0,50 MPa - 5,0 bar / (O, D): 2,50 MPa 25 bar

Measure and weight: diameter: 122mm / length: 174mm / weight:3,547 g
