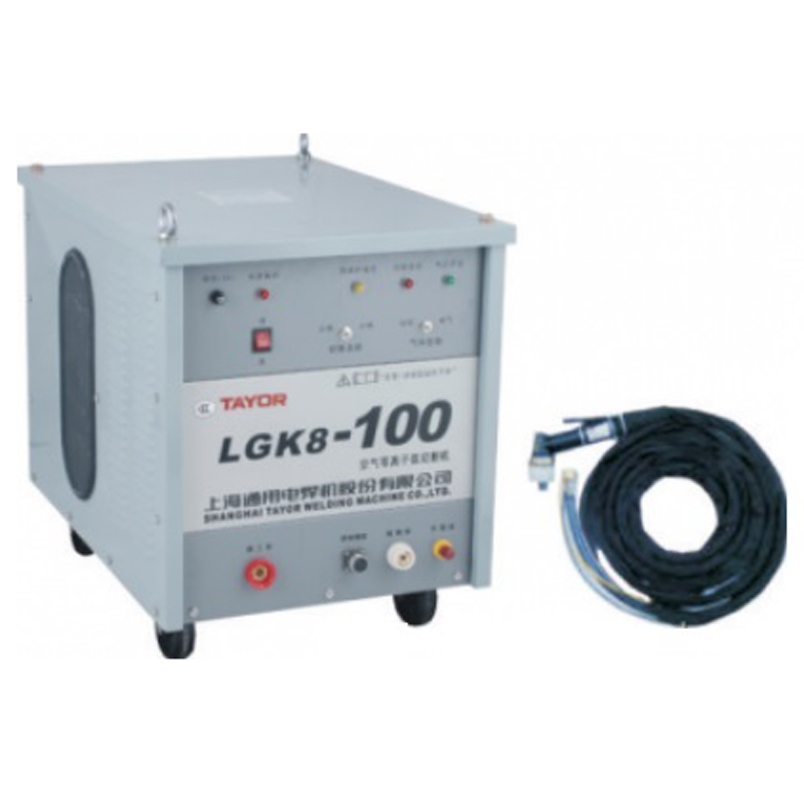

Máy cắt Plasma 100A (LGK8-100)
☎️ Hotline : 0983217958
Giá:
Máy cắt
Plasma LGK8
Xuất xứ: Trung Quốc
Seri: LGK8-40 (40A) / LGK8-63 (62A) / LGK8-100
(100A) / LGK80160 (160A)
Thông
số kỹ thuật:
|
Model |
LGK8-40 |
LGK8-63 |
LGK8-100 |
LGK8-160 |
|
Điện áp sử dụng (V) |
3 phase 380v |
3 phase 380v |
3 phase 380v |
3 phase 380v |
|
Công suất (KVA) |
11.2 |
19.8 |
30 |
49.4 |
|
Điện áp không tải
(V) |
240 |
275 |
275 |
310 |
|
Điện áp cắt (V) |
96 |
105 |
120 |
144 |
|
Dòng sơ cấp (A) |
17 |
30 |
45 |
75 |
|
Dòng cắt (A) |
40 |
63 |
100 |
80 /
160 |
|
Chiều dày vật cắt
(mm) |
≤12 |
≤18 |
≤30 |
≤50 |
|
Áp suất khí nén
(MPA) |
0.3-0.5 |
0.3-0.5 |
0.4-0.6 |
0.3-0.5 |
|
Hiệu suất làm việc
(%) |
60 |
60 |
60 |
60 |
|
Kiểu làm mát |
Wind-cooling |
Wind-cooling |
Wind-cooling |
Wind-cooling |
|
Kích thước L*W*H
(mm) |
705*435*580 |
725*455*600 |
755*485*630 |
1180*600*1070 |
|
Khối lượng (Kg) |
70 |
85 |
120 |
290 |
LGK8 series air plasma arc cutting machine
Model LGK8-40 LGK8-63 LGK8-100
LGK8-160
Features,
1.New technology in cutting material.
2.Melt to cut material by high temperature and high speed plasma arc.
3.Only need compressed air and 3 phase power source without expensive gas, can
cut stainless steel, carbon steel, alloy steel, aluminum, copper, nickel,
titanium etc.
4.Fast cutting, narrow kerf, small deformation, saving material, low cost in
production..
Technical Parameter
|
Model |
LGK8-40 |
LGK8-63 |
LGK8-100 |
LGK8-160 |
|
Rated input voltage
(V) |
3 phase 380v |
3 phase 380v |
3 phase 380v |
3 phase 380v |
|
Rated input power
(KVA) |
11.2 |
19.8 |
30 |
49.4 |
|
No-load voltage (V) |
240 |
275 |
275 |
310 |
|
Rated welding
voltage (V) |
96 |
105 |
120 |
144 |
|
Rated input current
(A) |
17 |
30 |
45 |
75 |
|
Rated cutting
current (A) |
40 |
63 |
100 |
80 /
160 |
|
Cutting thickness
(mm) |
≤12 |
≤18 |
≤30 |
≤50 |
|
Air pressure (MPA) |
0.3-0.5 |
0.3-0.5 |
0.4-0.6 |
0.3-0.5 |
|
Rated duty cycle
(%) |
60 |
60 |
60 |
60 |
|
Cooling style |
Wind-cooling |
Wind-cooling |
Wind-cooling |
Wind-cooling |
|
External size L*W*H
(mm) |
705*435*580 |
725*455*600 |
755*485*630 |
1180*600*1070 |
|
Weight (Kg) |
70 |
85 |
120 |
290 |
